Piccini Mobile Batching Plant with OMG mixer

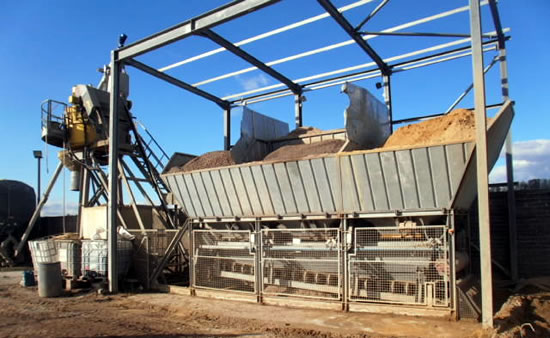

Used mobile batching plant showing 3 - 6 aggregate bin storage

Mobile batching plant showing batch cabin

Mobile plant output of 54 cubic metres per hour. Can be 3 - 6 bin, currently set as 4.

Batch Plant is completely mobile, folds away as a flat pack system for movment via 40 foot container or flat bed trailer.

Download the mobile batching plant features and specifications

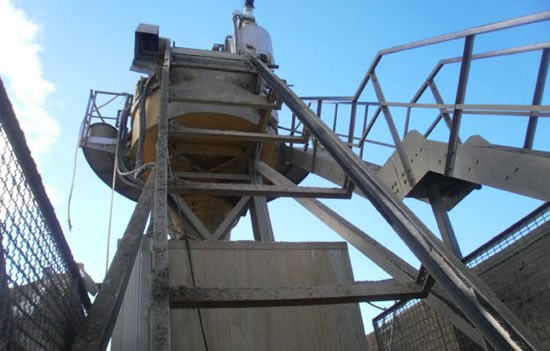

Mobile batching plant mixer fed by skip hoist

  • 1 cubic metre output OMG planetary mixer (1200litres)
  • Mixer is fed by a 1650 litre skip hoisted via steel cables
  • The plant has the capacity of 42m³ aggregate storage either split into 3 or 6 bins, currently the plant is split into 4 bin usage.
  • 5000kg belt weigh capacity for aggregates
  • 600kgs cement hopper capacity mounted by pan mixer with cement silo feed inlet
  • Admixture pump mounted in batch cabin controlled by automatic/manual batch system
  • The plant is controlled via automatic / manual computer with recipe storage, automatic preset admixture dosage, and docket printer, all mounted in self-contained insulated batch cabin mounted on frame of batch plant.

Download the mobile batching plant features and specifications

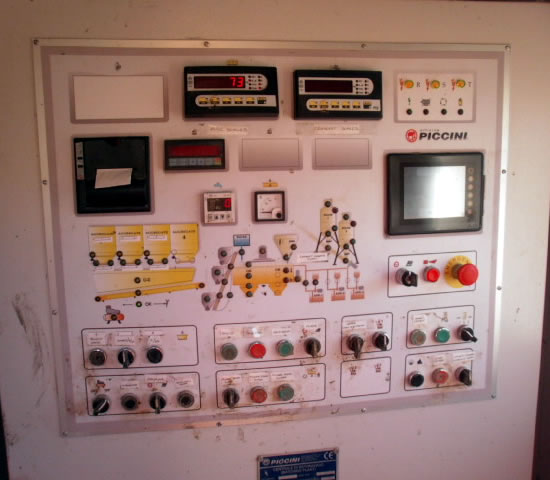

Mobile batching plant control panel

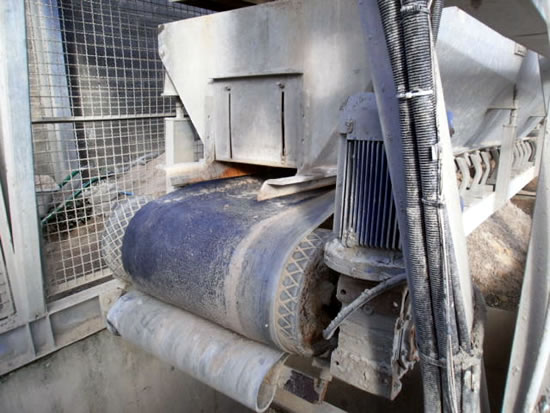

Mobile plant belt with 5000kg weight capacity

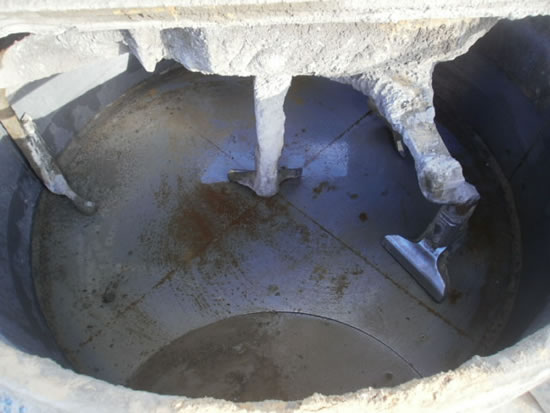

Planetary concrete mixer for mobile plant
